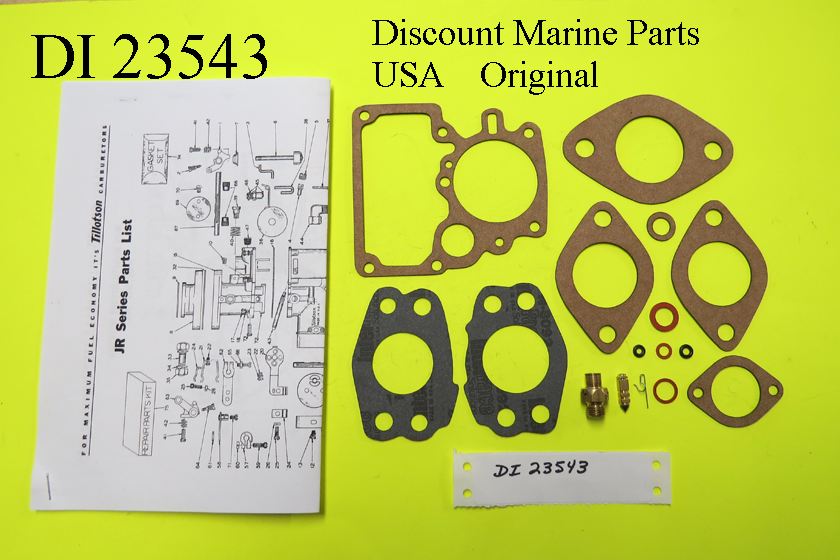

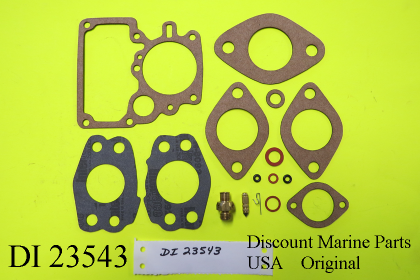

Tillotson JR2 JR4 JR6 Carburetor Repair Kit Chrysler DeSoto Dodge Chev IHC DI 23543
$39.95
22 Items
DI 23543
Note!
Make sure you have a JR-2, JR-4 or JR-6 before you order this kit.
(JR-1 JR-3 JR-5 Require different Kit)
DI 23543
Note!
Make sure you have a JR-2, JR-4 or JR-6 before you order this kit.
(JR-1 JR-3 JR-5 Require different Kit)
The JR Series Carburetors were used on the following:
Tillotson Model Series JR
| Model | Description | End Customer | Equipment Type | Year Used | Our Repair Kit |
| JR-1 | Chrysler Car | Car 4 & 6 Cyl. 50, 52, 58, 60 & 62 | 1925-28 | DI-23541 | |
| JR-1 | Chrysler Car | Car 6 Cyl. CJ 6 | 1930-31 | DI-23541 | |
| JR-1 | DeSoto Car | Car 6 Cyl. K & CK | 1928-31 | DI-23541 | |
| JR-1 | Dodge Car | Car 4 Cyl. 128 & 129 | 1928 | DI-23541 | |
| JR-1 | Dodge Car | Car 6 Cyl. DD | 1930-32 | DI-23541 | |
| JR-1 | Oldsmobile Car | Car 6 Cyl. All | 1927-30 | DI-23541 | |
| JR-1 | Plymouth Car | Car 4 Cyl. Four (Except Floating Power) | 1928-31 | DI-23541 | |
| JR-1 | I.H.C. Truck | Truck 4 Cyl. A1, A2, B2, C10 & C20 | 1932-36 | DI-23541 | |
| JR-2 | Chrysler Car | Car 6 Cyl. 65, 66, CM & CI | 1928-32 | DI-23543 | |
| JR-2 | DeSoto Car | Car 6 Cyl. SA & SC | 1931-32 | DI-23543 | |
| JR-2 | Dodge Car | Car 6 Cyl. DA, DH & DL | 1929-32 | DI-23543 | |
| JR-2 | Studebaker Car | Car 6 & 8 Cyl. FC, 53, 54 & 55 | 1929-32 | DI-23543 | |
| JR-2 | Studebaker Car | Car 6 Cyl. Dict. Spec - Dict. A | 1934 | DI-23543 | |
| JR-2 | Diamond T Truck | Truck 6 Cyl. 151 & 290 | 1929-31 | DI-23543 | |
| JR-2 | Federal Truck | Truck 6 Cyl. A6, T7W, A6T, F7 & H6 | 1929-33 | DI-23543 | |
| JR-2 | I.H.C. Truck | Truck 6 Cyl. S-24, S-26, SD46, SF-36, SF-46, AL-3, SL-36, A-3, A-4, A-5, A-6 & C-50 | 1926-36 | DI-23543 | |
| JR-2 | Indiana Truck | Truck 6 Cyl. 115A, 615A, 615 & 400 | 1928-32 | DI-23543 | |
| JR-2 | White Truck | Truck 6 Cyl. 56, 57, 161, 162, 210, 212, GRC Engine | 1929-34 | DI-23543 | |
| JR-3 | Oakland Sedan | 1926 | DI-23541 | ||
| JR-4 | Chrysler Car | Car 6 Cyl. 70 | 1926-27 | DI-23543 | |
| JR-4 | Studebaker Car | Car 6 & 8 Cyl. E. U. Dict.-F.D. Comm | 1928-30 | DI-23543 | |
| JR-4 | Reo Truck | Truck 6 Cyl. Speed Wagon GA, GB, GC, GD, FA, FC, FE, FF, FH, DA & DC | 1926-32 | DI-23543 | |
| JR-5 | Chevrolet Car | Car 6 Cyl. All | 1929-31 | DI-23541 | |
| JR-5 | Chevrolet Truck | Truck 6 Cyl. All | 1929-31 | DI-23541 | |
| JR-6 | Federal Truck | Truck 6 Cyl. 3C6, 4C6A, 4CAB, X8, X8R & X8DR | 1929-35 | DI-23543 | |
| JR-6 | I.H.C. Truck | Truck 6 Cyl. C-55 & C-60 | 1931-36 | DI-23543 |
22 Items
Product Data
| Part Number | DI 23543 |
| OEM Manufacture | Tillotson |
| Product Description | Carburetor Kit |
| Condition | New |
