Stihl Trimmer FS120 FS200 FS250 FS300 Zama C1Q-S35 S36 C1Q-S51 thu S51D Carb Kit DI 40314

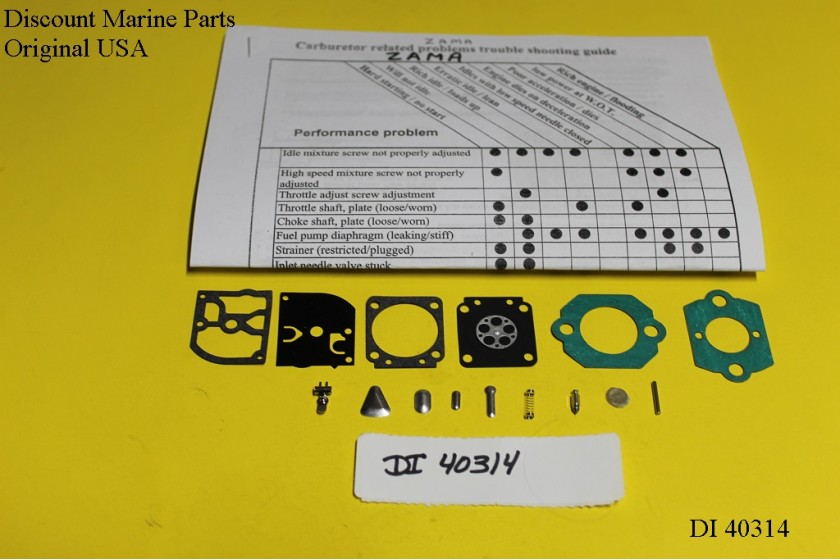

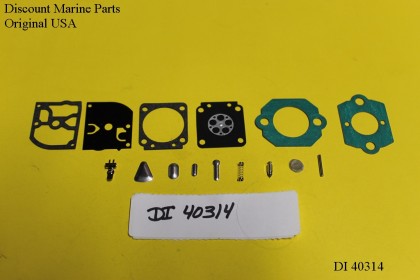

You are Purchasing a Zama C1Q Series Carburetor Kit
Please make sure you have a Zama Carburetor, Some of these Stihl models used a Walbro Carburetor
(Parts are not interchangeable)
Used on Zama C1Q Series
We provide additional Gaskets that are not included with Zama factory kit.
~
Please make sure you have one of the following Zama Carburetors before ordering:
C1Q-S35 C1Q-S35A C1Q-S35B
C1Q-S36 C1Q-S36A C1Q-S36B C1Q-S36C
C1Q-S36D C1Q-S36E C1Q-S36F C1Q-S36G
C1Q-S51 C1Q-S51A C1Q-S51B
C1Q-S51C C1Q-S51D
~
Application: Stihl Model Trimmers
~
Zama Carburetor part numbers can be difficult to determine looking at Carburetor.
They are broken up in to 2 groups.
1st group is the Body Type and the 2nd is the Model Number
The Body Type is stamped or embossed on one side & the Model Number is stamped on one of the other side.
The Model Number can be confusing because sometimes the production date is attached to the end of Model Number.
Example: C1Q-H421011 - C1Q-H42 is the number you are looking for, 1011 is production date.
Product Data
Part Number | DI 40314 |
OEM Manufacture | Zama |
Product Description | Carburetor Kit |
Product Application | Trimmer |
Condition | New |
