Walbro WE18 - WE19 Carburetor Chrysler Force Mercury Carb Repair Kit DI 26344
$36.95
5 Items
You are purchasing a Walbro WE Series Carb Kit
You are purchasing a Walbro WE Series Carb Kit
Note! This kit is for one Carburetor
(You will need a kit for each Carburetor on your Motor)
~
Also Note! This Kit will not work on the WE-1 Thru WE-17 Carb Series
~
Note!
Please make sure you have a Walbro WE Series Carburetor.
The Tillotson WB Series were used on some of the same models
The Kits are not interchangable
~
| Model | Description | End Customer | Equipment Type | Year Used | Our Repair Kit |
| WE-1 | Chrysler | Outboard 25HP | 1983-84 | DI-25731 | |
| WE-2 | Chrysler | Outboard 35HP | DI-25731 | ||
| WE-3-1 | Force | Outboard | DI-25731 | ||
| WE-3-2 | Force | Outboard | DI-25731 | ||
| WE-4-1 | Chrysler (Top Carb) | Outboard 75 & 85HP | 1982-85 | DI-25731 | |
| WE-4-1 | Force (Top Carb) | Outboard 85HP | 1983-85 | DI-25731 | |
| WE-4-2 | Chrysler (Center & Bottom Carb) | Outboard 75 & 85HP | 1983-85 | DI-25731 | |
| WE-4-2 | Force (Center & Bottom Carb) | Outboard 85HP | 1983-85 | DI-25731 | |
| WE-5-1 | Chrysler (Top) | Outboard 115HP | 1983-84 | DI-25731 | |
| WE-5-2 | Chrysler (Bottom) | Outboard 115HP | 1983-84 | DI-25731 | |
| WE-6-1 | Chrysler | Outboard 90HP & 100HP | 1983-84 | DI-25731 | |
| WE-6-1 | Chrysler | Outboard 105HP | 1983 | DI-25731 | |
| WE-6-2 | Chrysler | Outboard 90HP & 100HP | 1983-84 | DI-25731 | |
| WE-6-2 | Chrysler | Outboard 105HP | 1983 | DI-25731 | |
| WE-7-1 | Chrysler (Top Carb) | Outboard 60HP | 1984-85 | DI-25731 | |
| WE-7-2 | Chrysler (Bottom Carb) | Outboard 60HP | 1984-85 | DI-25731 | |
| WE-8 | Chrysler | Outboard 50HP | 1984-85 | DI-25731 | |
| WE-8 | Force | Outboard 50HP | 1985 | DI-25731 | |
| WE-9-1 | Force (Top Carb) | Outboard 85HP | 1985-87 | DI-25731 | |
| WE-9-2 | Force (Center & Bottom Carb) | Outboard 85HP | 1985-87 | DI-25731 | |
| WE-13 | Force | Outboard 50HP | 1986-87 | DI-25731 | |
| WE-15 | Chrysler | Outboard 35HP | 1986-87 | DI-25731 | |
| WE-16 | Force | Outboard | DI-25731 | ||
| WE-16A | Force | Outboard 35HP | 1988 | DI-25731 | |
| WE-16B | Force | Outboard 25HP & 35HP | 1989 | DI-25731 | |
| WE-17 | Force | Outboard 50HP | 1987-88 | DI-25731 | |
| WE-17A | Force | Outboard 50HP | 1988-89 | DI-25731 | |
| WE-17C | Force | Outboard 50HP | 1989 | DI-25731 | |
| WE-18-1A | Force (Top Carb) | Outboard 85HP | 1987-88 | DI-26344 | |
| WE-18-1A | Force (Top Carb) | L Drive 85HP | 1989 | DI-26344 | |
| WE-18-2A | Force (Center & Bottom Carb) | Outboard 85HP | 1987-88 | DI-26344 | |
| WE-18-2A | Force (Center & Bottom Carb) | L Drive 85HP | 1989 | DI-26344 | |
| WE-18-1C | Force (Top Carb) | Outboard 85HP | 1989 | DI-26344 | |
| WE-18-2C | Force (Center & Bottom Carb) | Outboard 85HP | 1989 | DI-26344 |
WE-1 Thru WE-17C use Kit Number DI 25731
~

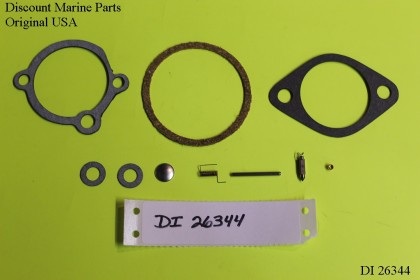

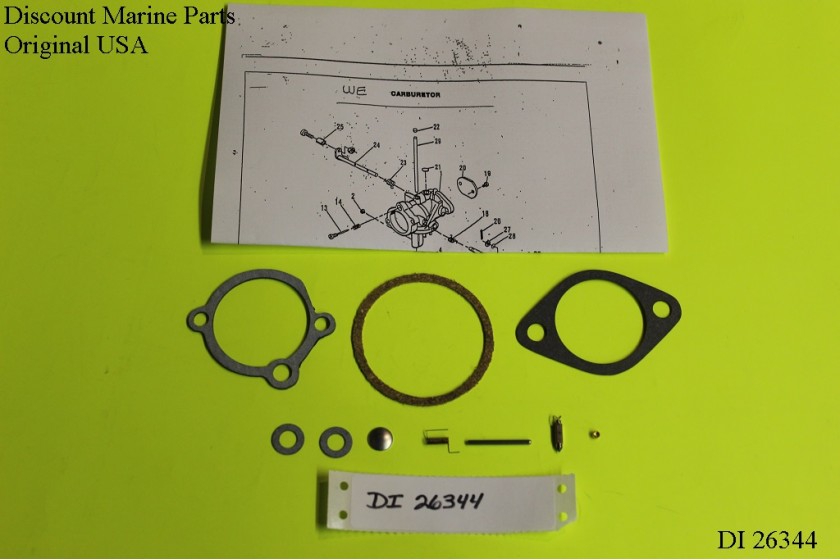

Parts are all genuine Walbro and Chrysler Mercury parts.
~
Our kit includes the Mounting Flange Gasket and
Intake Gasket used on 60hp & all 3 Cylinder Motors with 3 Carburetors
We have provided 2 Bowl Nut Gaskets
Some "WE" Carburetors did not use a Gasket inside Bowl
5 Items
Product Data
| Part Number | DI 26344 |
| OEM Manufacture | Walbro |
| Product Description | Carburetor Kit |
| Product Application | Outboard Motor |
| Condition | New |
