Tillotson E1 E2 E3 E4 E5 E6 E7 E8 E9 E10 E11 E12 Carburetor Lauson H Kohler K141 Carb Kit DI 23607

$32.95
13 Items

DI 23607


We have included Intake and Flange Gasket

that are not in original kit

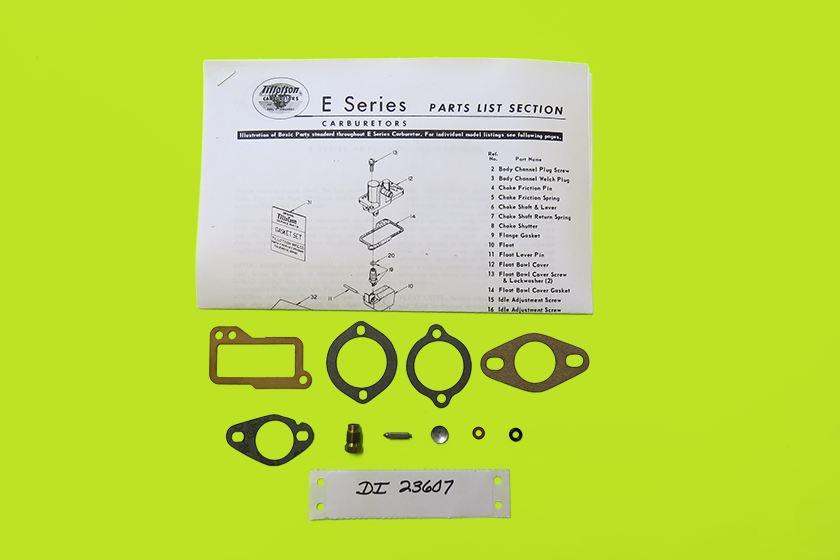

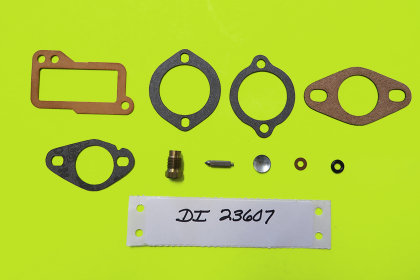

You are purchasing an original Carburetor Kit

for the following Tillotson Model Carburetors.

Note! See application chart below

Quantity
In Stock

Application:

Tillotson   Model Series E

Model Description End Customer Equipment Type Year Used Our Repair Kit
E-1A Replaced by E-1B Lauson Engine   1958 DI-23607
E-1B    Lauson Engine   1959 DI-23607
E-2A Replaced by E-2B Lauson Engine H45A & HB45A (All Types) 4.5HP 1959-60 DI-23607
E-2A Replaced by E-2B Lauson Engine H55A & HB55A (All Types) 5.5HP 1959-60 DI-23607
E-2B    Lauson Engine     DI-23607
E-3A Replaced by E-3B Lauson Engine   1958 DI-23607
E-3B   Lauson Engine   1959 DI-23607
E-3B   Motor Wheel Corp. Snow Throw 420-PO 1960 DI-23607
E-4A Replaced by E-4B Motor Wheel Corp. Power Mower 421-WR 1958 DI-23607
E-4AR Replaced by E-4B Lauson Engine   1959 DI-23607
E-4B   Lauson Engine H20B (All Types) 2HP 1959 DI-23607
E-4B   Lauson Engine H25B & HB25B (All Types) 2.5HP 1959 DI-23607
E-4B   Lauson Engine H30B & HB30B (All Types) 3HP 1959 DI-23607
E-5A   Lauson Engine   1959 DI-23607
E-5AR   Lauson Engine   1959 DI-23607
E-6A   Lauson Engine H35D & HB35D (All Type) 3.5HP 1959-60 DI-23607
E-7A    Lauson Engine   1959 DI-23607
E-8A   Lauson Engine H22D,HA22A & HB22D (All Types) 2.25HP 1959-60 DI-23607
E-8A   Lauson Engine H25D & HB25D (All Types) 2.5HP 1959-60 DI-23607
E-8A   Lauson Engine H30D & HB30D (All Types) 3HP 1959-60 DI-23607
E-9A   Lauson Engine   1959-60 DI-23607
E-10A Replaced by E-10B Lauson Engine   1959-60 DI-23607
E-10B   Lauson Engine   1959-60 DI-23607
E-11A   Kohler Engine K141 1963 DI-23607
E-12A   Kohler Engine K141 1963 DI-23607
E-12A   Wheel Horse Model 633 1963 DI-23607
E-626D   Johnson Motors Racing Outboards KR-80, DR-55 & KR-39 (Used Dynax Fuel) 1937-39 Call or Email
E-626J   Johnson Motors Racing Outboards KR-80, DR-55 & KR-39 (Used Dynax Fuel) 1937-39 Call or Email
Lauson
13 Items

Product Data

Part Number DI 23607
OEM Manufacture Tillotson
Product Description Carburetor Kit
Product Application Small Engine

Specific References
