Tillotson AJ Series Carburetor Mercury Champion Neptune Scott-Atwater Carb Kit DI 20384
$48.95
2 Items
DI 20384

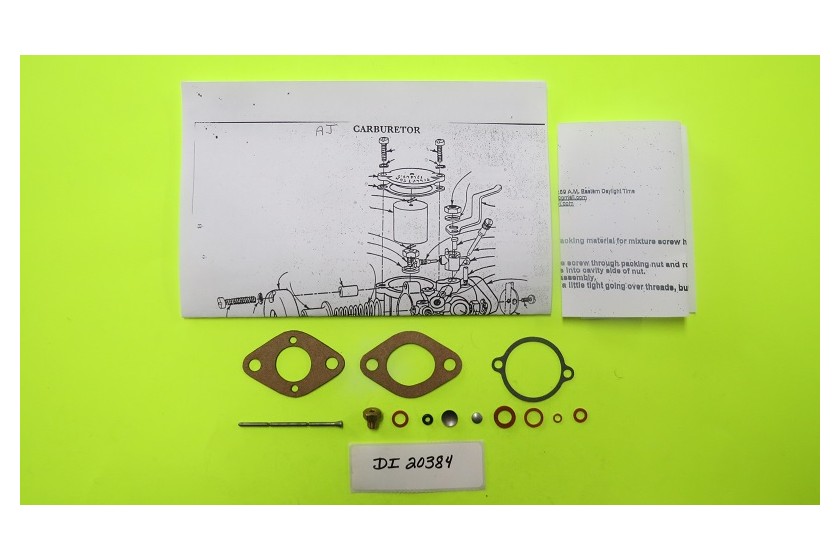

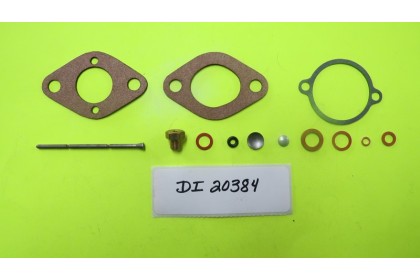

You are purchasing a Tillotson Repair Kit.
Used on the following Tillotson AJ Series
Model Carburetor.
Note! Please make sure your Model Carburetor number
Is listed on Chart below
This is an OEM (Original Equipment Manufactured) Tillotson Rebuild Kit.
DI 20384
You are purchasing a Tillotson Repair Kit.
Used on the following Tillotson AJ Series
Model Carburetor.
Note! Please make sure your Model Carburetor number
Is listed on Chart below
This is an OEM (Original Equipment Manufactured) Tillotson Rebuild Kit.
Tillotson Model Series AJ
| Model | Description | End Customer | Equipment Type | Year Used | Our Repair Kit |
| AJ-1A | Champion Motors Co. | Outboard D4G-400 3HP & S4G-400 3HP | 1941 | DI-20384 | |
| AJ-1A | Champion Motors Co. | Outboard M4G-Commodoro 3.6HP | 1941 | DI-20384 | |
| AJ-2A | Champion Motors Co. | Outboard B1F-Blue Streak 2.7HP, D1G-Challenger 3HP, S1G-Challenger 3HP | 1941 | DI-20384 | |
| AJ-2A | Champion Motors Co. | Outboard 1H Super Single 3.5HP & M1G-Ensign 3HP | 1942 | DI-20384 | |
| AJ-3A | Kiekhaefer & Champion | Outboard | 1941 | DI-20384 | |
| AJ-3A | Muncie Gear | Outboard 15B2 | 1941 | DI-20384 | |
| AJ-3A | Wizard | Outboard WB6 | 1941-47 | DI-20384 | |
| AJ-4A | Muncie Gear & Champion | Outboard 11A2, 11B2, 15B2 & AA-2 | 1941-46 | DI-20384 | |
| AJ-4A | Muncie Gear & Champion | Outboard AA-2 | 1947 | DI-20384 | |
| AJ-5A | Muncie Gear & Champion | Outboard 11A3, 15A3, A3, AA-3 | 1941-46 | DI-20384 | |
| AJ-6A | Muncie Gear & Champion | Outboard 11A6, 15A6, 17A6 & A6 | 1941-47 | DI-20384 | |
| AJ-7A | Muncie Gear & Champion | Outboard 11A9, 15A9, 17A9 & A-9 | 1941-47 | DI-20384 | |
| AJ-8A | Replaced by AJ-8B | Kiekhaefer Corp. | Outboard KB-4, KB-5 KD-5 & KD-5S | 1941-47 | DI-20384 |
| AJ-8A | Replaced by AJ-8B | Kiekhaefer Corp. | Outboard KD-4 & KD-4S | 1946-47 | DI-20384 |
| AJ-8A | Replaced by AJ-8B | Wizard | Outboard WB4, WD4 & WD4S 6HP | 1941-53 | DI-20384 |
| AJ-8B | Wizard | Outboard WF4 & WG4 6HP | 1949-52 | DI-20384 | |
| AJ-8BX | Kiekhaefer Corp. | Outboard | DI-20384 | ||
| AJ-9A | Champion Motors Co. | Outboard 3G-Electra 6.25HP | 1941 | DI-20384 | |
| AJ-9A | Champion Motors Co. | Outboard 3H-Electra 6HP | 1942 | DI-20384 | |
| AJ-10A | Replaced by AJ-10B | Kiekhaefer Corp. | Outboard KB-3, KD-3 & KD-3S | 1946 | DI-20384 |
| AJ-10A | Replaced by AJ-10B | Wizard | Outboard WB-3 | 1941-47 | DI-20384 |
| AJ-10B | Kiekhaefer Corp. | Outboard | DI-20384 | ||
| AJ-10B | Wizard | Outboard WD3 & WD3S | 1948-49 | DI-20384 | |
| AJ-10BX | Kiekhaefer Corp. | Outboard | DI-20384 |
| AJ-16A | Corsair Outboard Mtr. | Outboard 4820 Standard Single | 1948-49 | DI-20384 | |
| AJ-16A | Firestone Tire | Outboard 10A111 3.6HP | 1959 | DI-20384 | |
| AJ-16A | Scott Atwater | Outboard 3.6HP | 1952-60 | DI-20384 | |
| AJ-16A | Scott Atwater | Outboard Super Single 3HP | 1954 | DI-20384 | |
| AJ-17A | Corsair Outboard Mtr. | Outboard 4821 & 5020 3.6HP | 1948-51 | DI-20384 | |
| AJ-17A | Corsair Outboard Mtr. | Outboard 4921 & 5021 4HP | 1949-51 | DI-20384 | |
| AJ-17A | Firestone Tire | Outboard 10A71 3.6HP | 1950-51 | DI-20384 | |
| AJ-17A | Firestone Tire | Outboard 10A71/1025 3.6HP | 1952 | DI-20384 | |
| AJ-17A | Firestone Tire | Outboard 10A71/1035 3.6HP | 1953 | DI-20384 | |
| AJ-17A | Firestone Tire | Outboard 10A71/1045 3.6HP | 1954 | DI-20384 | |
| AJ-17A | Firestone Tire | Outboard Deluxe Single 4HP | 1949-50 | DI-20384 | |
| AJ-17A | Firestone Tire | Outboard 10A72 Deluxe Single 4HP | 1950-51 | DI-20384 | |
| AJ-17A | Scott Atwater | Outboard 461 & 467 | 1946 | DI-20384 | |
| AJ-17A | Scott Atwater | Outboard 470 & 471 | 1947 | DI-20384 | |
| AJ-17A | Scott Atwater | Outboard 491 | 1949 | DI-20384 | |
| AJ-18A | Corsair Outboard Mtr. | Outboard 4823,4923 & 5023 7.5HP | 1948-51 | DI-20384 | |
| AJ-18A | Corsair Outboard Mtr. | Outboard 5023 & 2325 7.5HP | 1952 | DI-20384 | |
| AJ-18A | Corsair Outboard Mtr. | Outboard 5023 & 2335 7.5HP | 1953 | DI-20384 | |
| AJ-18A | Firestone Tire | Outboard 10A53/133-9-4913 7.5HP | 1949-50 | DI-20384 | |
| AJ-18A | Firestone Tire | Outboard 10A74/1325 7.5HP | 1950-52 | DI-20384 | |
| AJ-18A | Firestone Tire | Outboard 10A74/1335 7.5HP | 1953 | DI-20384 | |
| AJ-18A | Firestone Tire | Outboard 10A103/1745 7.5HP | 1954 | DI-20384 | |
| AJ-18A | Scott Atwater | Outboard 473 | 1947 | DI-20384 | |
| AJ-19A | Mercury | Outboard KE-4 | 1948-49 | DI-20384 |
| AJ-21A | Neptune (Muncie Gear Co.) | O/B A1, B1 & Standard Single 1.7HP | 1948-52 | DI-20384 WE HAVE NEW CARBS. | |
| AJ-21A | Neptune (Muncie Gear Co.) | Outboard 17A1 & 17B1 | 1947 | DI-20384 WE HAVE NEW CARBS. | |
| AJ-21A | Neptune (Muncie Gear Co.) | Outboard B1 | 1948 | DI-20384 WE HAVE NEW CARBS. | |
| AJ-21A | Neptune (Muncie Gear Co.) | Outboard A1 | 1948-57 | DI-20384 WE HAVE NEW CARBS. | |
| AJ-21A | Neptune (Muncie Gear Co.) | Outboard Mighty Mite 1.7HP | 1955-60 | DI-20384 WE HAVE NEW CARBS. | |
| AJ-22A | Mercury | Outboard | DI-20384 | ||
| AJ-23A | Mercury | Outboard KE4 & KF4 7.5HP | 1947-53 | DI-20384 | |
| AJ-23A | Mercury | Outboard Mark 7 7.5HP | 1953-55 | DI-20384 | |
| AJ-24A | Neptune (Muncie Gear Co.) | Outboard AA-4 | 1948-49 | DI-20384 | |
| AJ-25A | Neptune (Muncie Gear Co.) | Outboard 18AA6 | 1948-49 | DI-20384 | |
| AJ-26A | Neptune (Muncie Gear Co.) | Outboard AA10 | 1948-49 | DI-20384 | |
| AJ-27A | Neptune (Muncie Gear Co.) | Outboard AA2 | 1948-49 | DI-20384 | |
| AJ-28A | I.E.L. Industrial Eng. LTD | Power Saw Pioneer 1.5HP | 1948-50 | DI-20384 | |
| AJ-28A | I.E.L. Industrial Eng. LTD | Power Saw Pioneer Twin 5HP | 1949-50 | DI-20384 | |
| AJ-28A | I.E.L. Industrial Eng. LTD | Power Saw PB | 1950-51 | DI-20384 | |
| AJ-28A | I.E.L. Industrial Eng. LTD | Power Saw Super Twin 6HP | 1950-53 | DI-20384 | |
| AJ-28A | I.E.L. Industrial Eng. LTD | Power Saw PC | 1951 | DI-20384 |
2 Items
Product Data
| Part Number | DI 20384 |
| OEM Manufacture | Tillotson |
| Product Description | Carburetor Kit |
| Product Application | Outboard Motor |
| Condition | New |
