Mercury Outboard Carburetor Tillotson KA2 KA7 KA8 KA9 KA10 KA11 KA12 KA13 KA14 KA16 KA17 KA18 KA 20 KA21 KA25 Carb Kit DI 20402
$32.95
20 Items

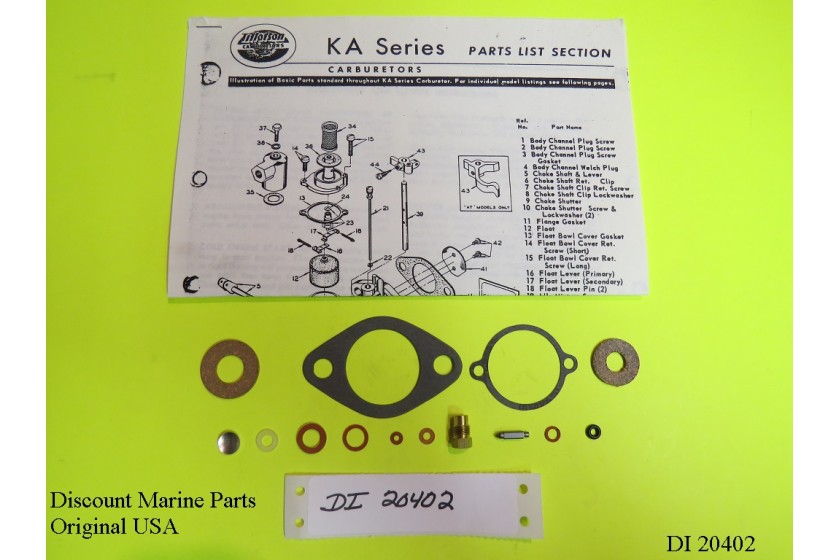

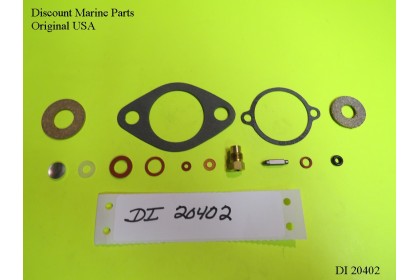

You are purchasing a Tillotson KA Series Carburetor Kit
You are purchasing a Tillotson KA Series Carburetor Kit
Note!
This kit is for One Carburetor - If your Motor has Two Carburetors, you will need a Kit for each
Please make sure you have one of the following
Carburetors before ordering this Kit.
~
These Mercury Outboard Models used other types of Carburetors
These Mercury Outboard Models used other types of Carburetors
Tillotson Model Series KA
| Model | Description | End Customer | Equipment Type | Year Used | Our Repair Kit |
| KA-2A | Mercury Marine | Outboard Mark 58A 40HP | 1959 | DI-20402 | |
| KA-2A | Mercury Marine | Outboard Mark 58E,M,S, & EL 45HP | 1958 | DI-20402 | |
| KA-2A | Mercury Marine | Outboard Mark 78 & 78E 70HP | 1958 | DI-20402 | |
| KA-2A | Replaced by KA-9A | Mercury Marine | Outboard Merc 400 40-45HP | 1960 | DI-20402 |
| KA-2AT | Replaced by KA-9AT | Mercury Marine | Outboard Merc 400 40-45HP | 1960 | DI-20402 |
| KA-2AT | Mercury Marine | Outboard Mark 78A 70HP | 1959 | DI-20402 | |
| KA-5A | Mercury Marine | Outboard Mark 28 22HP | 1958 | DI-20402 | |
| KA-5A | Mercury Marine | Outboard Mark 28A 22HP | 1959 | DI-20402 | |
| KA-5A | Mercury Marine | Outboard Merc 200 22-23HP | 1960 | DI-20402 | |
| KA-5B | Mercury Marine | Outboard | DI-20402 | ||
| KA-6A | Mercury Marine | Outboard Mark 75H | 1957 | DI-20405 | |
| KA-6AT | Mercury Marine | Outboard Mark 75H | 1957-58 | DI-20405 | |
| KA-7A | Mercury Marine | Outboard Mark 55H | 1959-60 | DI-20402 | |
| KA-8A | Mercury Marine | Outboard Merc 700 70HP | 1960 | DI-20402 | |
| KA-8AT | Mercury Marine | Outboard Merc 700 70HP | 1960 | DI-20402 | |
| KA-9A | Mercury Marine | Outboard Merc 400 40-45HP | 1960 | DI-20402 | |
| KA-9AT | Mercury Marine | Outboard Merc 400 40-45HP | 1960 | DI-20402 | |
| KA-10A | Mercury Marine | Outboard Merc 800 80HP | 1960 | DI-20402 | |
| KA-10AT | Mercury Marine | Outboard Merc 800 80HP | 1960 | DI-20402 | |
| KA-11A | Mercury Marine | Outboard Merc 800 80HP | 1961 | DI-20402 | |
| KA-11AT | Mercury Marine | Outboard Merc 800 80HP | 1961 | DI-20402 | |
| KA-12A | Mercury Marine | Outboard Merc 700 70HP | 1961-62 | DI-20402 | |
| KA-12AT | Mercury Marine | Outboard Merc 700 70HP | 1961-62 | DI-20402 | |
| KA-13A | Mercury Marine | Outboard Merc 500 50HP | 1961 | DI-20402 | |
| KA-13AT | Mercury Marine | Outboard Merc 500 50HP | 1961 | DI-20402 | |
| KA-14A | Mercury Marine | Outboard Merc 800B 80HP | 1961 | DI-20402 | |
| KA-14AT | Mercury Marine | Outboard Merc 800B 80HP | 1961 | DI-20402 | |
| KA-15A | Mercury Marine | Outboard Merc 250 25HP | 1962 | DI-20402 | |
| KA-16A | Mercury Marine | Outboard Merc 800 80HP | 1962 | DI-20402 | |
| KA-16AT | Mercury Marine | Outboard Merc 800 80HP | 1962 | DI-20402 | |
| KA-17A | Mercury Marine | Outboard Merc 450 45HP | 1962 | DI-20402 | |
| KA-17AT | Mercury Marine | Outboard Merc 450 45HP | 1962 | DI-20402 | |
| KA-18A | Mercury Marine | Outboard Merc 500 50HP | 1962 | DI-20402 | |
| KA-18AT | Mercury Marine | Outboard Merc 500 50HP | 1962 | DI-20402 | |
| KA-19A | Mercury Marine | Outboard Merc 500 50HP | 1963-64 | DI-20402 | |
| KA-19AT | Mercury Marine | Outboard Merc 500 50HP | 1963-64 | DI-20402 | |
| KA-20A | Mercury Marine | Outboard Merc 200 20HP | 1963-64 | DI-20402 | |
| KA-21A | Mercury Marine | Outboard Merc 500 50HP | 1965 | DI-20402 | |
| KA-21AT | Mercury Marine | Outboard Merc 500 50HP | 1965 | DI-20402 | |
| KA-21B | Mercury Marine | Outboard Merc 500 50HP | 1965 | DI-20402 | |
| KA-21BT | Mercury Marine | Outboard Merc 500 50HP | 1965-66 | DI-20402 | |
| KA-21C | Mercury Marine | Outboard Merc 500 50HP | 1967 | DI-20402 | |
| KA-21CT | Mercury Marine | Outboard Merc 500 50HP | 1967 | DI-20402 | |
| KA-21D | Mercury Marine | Outboard Merc 500 50HP | 1968 | DI-20402 | |
| KA-21DT | Mercury Marine | Outboard Merc 500 50HP | 1968 | DI-20402 | |
| KA-22A | Mercury Marine | Outboard Merc 200 20HP | 1966 | DI-20402 | |
| KA-22B | Mercury Marine | Outboard Merc 200 20HP | 1967 | DI-20402 | |
| KA-22C | Mercury Marine | Outboard Merc 200 20HP | 1968 | DI-20402 | |
| KA-23A | Mercury Marine | Outboard Merc 200 20HP | 1969 | DI-20402 | |
| KA-24A | Mercury Marine | Outboard Merc 500 50HP | 1969-71 | DI-20402 | |
| KA-24AT | Replaced by KA-24BT | Mercury Marine | Outboard Merc 500 50HP | 1969-71 | DI-20402 |
| KA-24BT | Mercury Marine | Outboard Merc 500 50HP | 1971-72 | DI-20402 | |
| KA-25A | Mercury Marine | Outboard Merc 200 20HP | 1969-71 | DI-20402 | |
| KA-26A | Mercury Marine | Outboard Merc 500 50HP | 1973 | DI-20402 | |
| KA-26AT | Mercury Marine | Outboard Merc 500 50HP | 1973 | DI-20402 | |
| KA-26B | Mercury Marine | Outboard Merc 500 50HP | 1974 | DI-20402 | |
| KA-26BT | Mercury Marine | Outboard Merc 500 50HP | 1974 | DI-20402 | |
| KA-27A | Mercury Marine | Outboard Merc 500 50HP | 1975 | DI-20402 | |
| KA-27AT | Mercury Marine | Outboard Merc 500 50HP | 1975 | DI-20402 |
20 Items
Product Data
| Part Number | DI 20402 |
| OEM Manufacture | Tillotson |
| Product Description | Carburetor Kit |
| Product Application | Outboard Motor |
| Condition | New |
