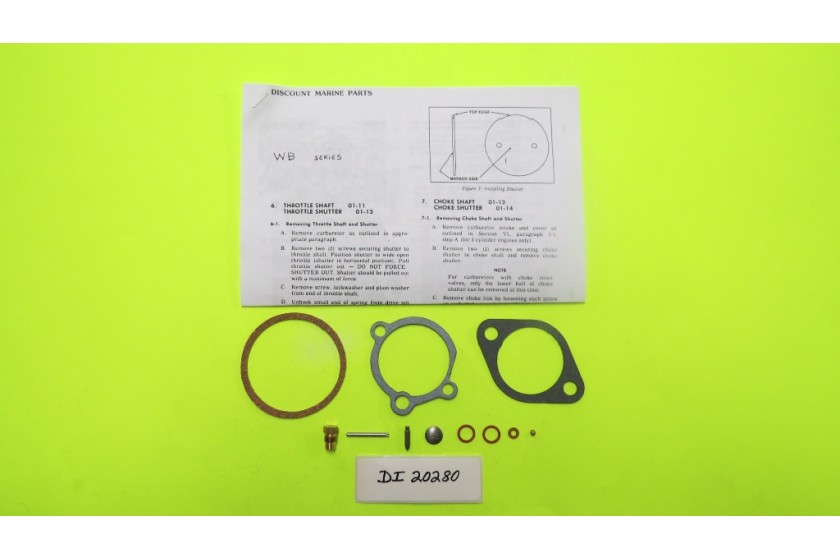

Chrysler Force Tillotson Carburetor WB 1 thru WB 31 Carb Kit DI 20280
$38.95
27 Items
DI 20280
Note! This kit is for One Carburetor
If your Motor has Two or Three Carburetors, you will need a Kit for each
We also have repair kits for the Later WB Kits 100 thru 139 (different part number)
DI 20280
Note! This kit is for One Carburetor
If your Motor has Two or Three Carburetors, you will need a Kit for each
We also have repair kits for the Later WB Kits 100 thru 139 (different part number)
Tillotson Model Series WB
| Model | Description | End Customer | Equipment Type | Year Used | Our Repair Kit |
| WB-1A | Replaced by WB-8D | Chrysler Marine | Outboard 75HP | DI-20280 | |
| WB-1B | Replaced by WB-8D | Chrysler Marine | Outboard 75HP | DI-20280 | |
| WB-1C | Replaced by WB-8D | Chrysler Marine | Outboard 75HP | DI-20280 | |
| WB-2A | Replaced by WB-10E | Chrysler Marine | Outboard 100HP | DI-20280 | |
| WB-2B | Replaced by WB-10E | Chrysler Marine | Outboard 105HP | DI-20280 | |
| WB-2C | Replaced by WB-10E | Chrysler Marine | Outboard 105HP | DI-20280 | |
| WB-3A | Replaced by WB-12B | Chrysler Marine | Outboard 35HP | DI-20280 | |
| WB-3A | Replaced by WB-12B | Chrysler Marine | Outboard 35HP | DI-20280 | |
| WB-3B | Replaced by WB-12B | Chrysler Marine | Outboard 35HP | DI-20280 | |
| WB-3C | Replaced by WB-12B | Chrysler Marine | Outboard 35HP | DI-20280 | |
| WB-4A | Replaced by WB-11B | Chrysler Marine | Outboard 45HP | DI-20280 | |
| WB-4B | Replaced by WB-11B | Chrysler Marine | Outboard 45HP | DI-20280 | |
| WB-4C | Replaced by WB-11B | Chrysler Marine | Outboard 45HP | DI-20280 | |
| WB-5A | Replaced by WB-7B | Chrysler Marine | Outboard 55HP | DI-20280 | |
| WB-5B | Replaced by WB-7B | Chrysler Marine | Outboard 55HP | DI-20280 | |
| WB-6A | Replaced by WB-9D | Chrysler Marine | Outboard 85HP | DI-20280 | |
| WB-7A | Replaced by WB-7B | Chrysler Marine | Outboard 55HP | DI-20280 | |
| WB-7B | Chrysler Marine | Outboard 55HP | DI-20280 | ||
| WB-8A | Replaced by WB-8D | Chrysler Marine | Outboard 70HP | DI-20280 | |
| WB-8B | Replaced by WB-8D | Chrysler Marine | Outboard 70HP | DI-20280 | |
| WB-8C | Replaced by WB-8D | Chrysler Marine | Outboard 70HP | DI-20280 | |
| WB-8D | Chrysler Marine | Outboard 70HP | DI-20280 | ||
| WB-9A | Replaced by WB-9D | Chrysler Marine | Outboard 85HP | DI-20280 | |
| WB-9B | Replaced by WB-9D | Chrysler Marine | Outboard 85HP | DI-20280 | |
| WB-9C | Replaced by WB-9D | Chrysler Marine | Outboard 85HP | DI-20280 | |
| WB-9D | Chrysler Marine | Outboard 85HP | DI-20280 | ||
| WB-10A | Replaced by WB-10E | Chrysler Marine | Outboard 105HP | DI-20280 | |
| WB-10B | Replaced by WB-10E | Chrysler Marine | Outboard 105HP | DI-20280 | |
| WB-10C | Replaced by WB-10E | Chrysler Marine | Outboard 105HP | DI-20280 | |
| WB-10D | Replaced by WB-10E | Chrysler Marine | Outboard 105HP | DI-20280 | |
| WB-10E | Chrysler Marine | Outboard 105HP | DI-20280 | ||
| WB-11A | Replaced by WB-11B | Chrysler Marine | Outboard 45HP | DI-20280 | |
| WB-11B | Chrysler Marine | Outboard 45HP | DI-20280 | ||
| WB-12A | Replaced by WB-12B | Chrysler Marine | Outboard 35HP | DI-20280 | |
| WB-12B | Chrysler Marine | Outboard 35HP | DI-20280 | ||
| WB-13A | Replaced by WB-13D | Chrysler Marine | Outboard 120HP | DI-20280 | |
| WB-13B | Replaced by WB-13D | Chrysler Marine | Outboard 120HP | DI-20280 | |
| WB-13C | Replaced by WB-13D | Chrysler Marine | Outboard 120HP | DI-20280 | |
| WB-13D | Chrysler Marine | Outboard 120HP | DI-20280 | ||
| WB-14A | Replaced by WB-14B | Chrysler Marine | Outboard 135HP | DI-20280 | |
| WB-14B | Chrysler Marine | Outboard 135HP | DI-20280 | ||
| WB-15A | Replaced by WB-15D | Chrysler Marine | Outboard 55HP | DI-20280 | |
| WB-15B | Replaced by WB-15D | Chrysler Marine | Outboard 55HP | DI-20280 | |
| WB-15C | Replaced by WB-15D | Chrysler Marine | Outboard 55HP | DI-20280 | |
| WB-15D | Chrysler Marine | Outboard 55HP | DI-20280 | ||
| WB-16A | Replaced by WB-16D | Chrysler Marine | Outboard 45HP | DI-20280 | |
| WB-16B | Replaced by WB-16D | Chrysler Marine | Outboard 45HP | DI-20280 | |
| WB-16C | Replaced by WB-16D | Chrysler Marine | Outboard 45HP | DI-20280 | |
| WB-16D | Chrysler Marine | Outboard 45HP | DI-20280 | ||
| WB-17A | Replaced by WB-17C | Chrysler Marine | Outboard 35HP | DI-20280 | |
| WB-17B | Replaced by WB-17C | Chrysler Marine | Outboard 35HP | DI-20280 | |
| WB-17C | Chrysler Marine | Outboard 35HP | DI-20280 | ||
| WB-19A | Replaced by WB-19C | Chrysler Marine | Outboard 21 & 25HP | DI-20280 | |
| WB-19B | Replaced by WB-19C | Chrysler Marine | Outboard 21 & 25HP | DI-20280 | |
| WB-19C | Chrysler Marine | Outboard 25HP | DI-20280 | ||
| WB-20A | Replaced by WB-20B | Chrysler Marine | Outboard 23HP | DI-20280 | |
| WB-20B | Chrysler Marine | Outboard 30HP | DI-20280 | ||
| WB-21A | Chrysler Marine | Outboard 75 & 90 HP | 1975-77 | DI-20280 | |
| WB-21A | Chrysler Marine | Outboard 85 HP | 1977-84 | DI-20280 | |
| WB-21C | Chrysler Marine | Outboard 90HP | DI-20280 | ||
| WB-22A | Chrysler Marine | Outboard 80HP | DI-20280 | ||
| WB-23A | Replaced by WB-23B | Chrysler Marine | Outboard | DI-20280 | |
| WB-23B | Chrysler Marine | Outboard 60HP | DI-20280 | ||
| WB-24A | Replaced by WB-24B | Chrysler Marine | Outboard 105HP | DI-20280 | |
| WB-24B | Chrysler Marine | Outboard 105HP | DI-20280 | ||
| WB-25A | Replaced by WB-25B | Chrysler Marine | Outboard | DI-20280 | |
| WB-25B | Chrysler Marine | Outboard 75HP | DI-20280 | ||
| WB-26A | Replaced by WB-26B | Chrysler Marine | Outboard | DI-20280 | |
| WB-26B | Chrysler Marine | Outboard 75HP | DI-20280 | ||
| WB-27B | Chrysler Marine | Outboard 55HP | DI-20280 | ||
| WB-28A | Chrysler Marine | Outboard 35HP | DI-20280 | ||
| WB-29A | Chrysler Marine | Outboard 65HP | DI-20280 | ||
| WB-30A | Chrysler Marine | Outboard 30HP | DI-20280 | ||
| WB-31A | Chrysler Marine | Outboard 70HP |
27 Items
Product Data
| Part Number | DI 20280 |
| OEM Manufacture | Tillotson |
| Product Description | Carburetor Kit |
| Product Application | Outboard Motor |
| Condition | New |
