Chrysler Force Mercury Tillotson Carburetor TC100 thru TC139 Carb Kit DI 23494
$38.95
DI 23494

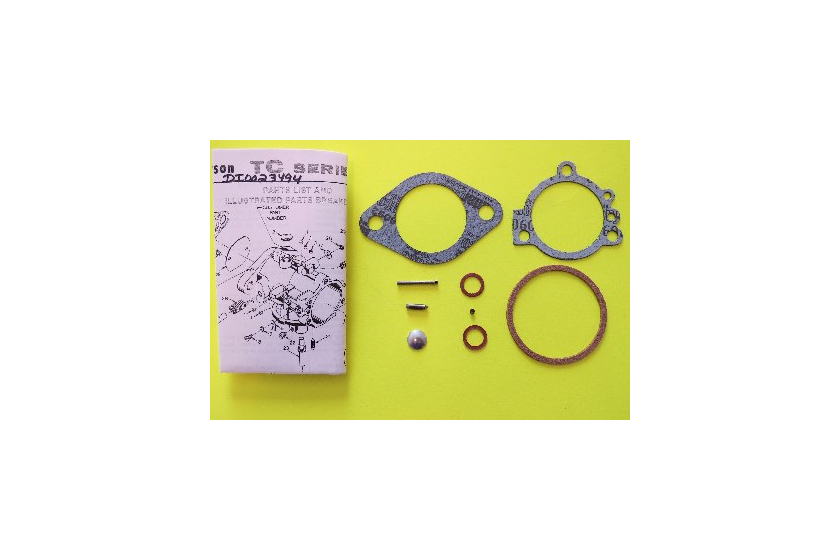

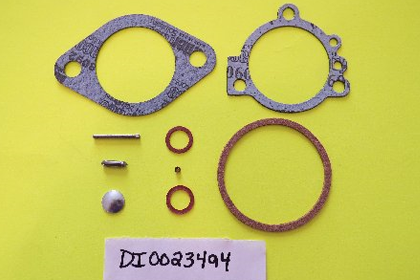

You are purchasing a Basic Repair Kit for a Tillotson TC Series Carburetor
Model TC-100 through TC-139
Note! This kit is for One Carburetor
If your Motor has Two or Three Carburetors, you will need a Kit for each.
We also have repair kits for the early TC Kits 1 thru 7 (different part number)
DI 23494
You are purchasing a Basic Repair Kit for a Tillotson TC Series Carburetor
Model TC-100 through TC-139
Note! This kit is for One Carburetor
If your Motor has Two or Three Carburetors, you will need a Kit for each.
We also have repair kits for the early TC Kits 1 thru 7 (different part number)
Application: Outboard
Chrysler - Force - Mercury
Tillotson Model Series TC
| Model | Description | End Customer | Equipment Type | Year Used | Our Repair Kit |
| TC-1A | Replaced by TC-1B | Chrysler Marine | Racing Outboard 1306BA, 1307HB, 1306HA & 1307HA 130HP | 1973 | DI-21120 |
| TC-1A | Replaced by TC-1B | Chrysler Marine | Racing Outboard 1508HA 150HP | 1973-74 | DI-21120 |
| TC-1B | Chrysler Marine | Outboard | DI-21120 | ||
| TC-1C | Chrysler Marine | Outboard | DI-21121 | ||
| TC-3A | Replaced by TC-3B | Mercury Marine | Racing Outboard Mercury IIx Twister | DI-21120 | |
| TC-3B | Mercury Marine | Outboard | DI-21120 | ||
| TC-4A | Chrysler Marine | Outboard Model number 464HB only 35 & 45 HP | 1974-75 | DI-21121 | |
| TC-5A | Replaced by TC-5B | Chrysler Marine | Outboard 105, 120 & 135 HP | 1976 | DI-21121 |
| TC-5B | Replaced by TC-5C | Chrysler Marine | Outboard 105, 120 & 135 HP | 1976 | DI-21121 |
| TC-5C | Chrysler Marine | Outboard 105, 120 & 135 HP | 1976 | DI-21121 | |
| TC-5D | Chrysler Marine | Outboard 105, 120 & 135 HP | 1977 | DI-21121 | |
| TC-5E | Chrysler Marine | Outboard 140 HP | 1978-84 | DI-21121 | |
| TC-6B | Chrysler Marine | Outboard 115HP | 1977-78 | DI-21121 | |
| TC-6B | Chrysler Marine | Outboard 125HP | 1981-84 | DI-21121 | |
| TC-7A | Chrysler Marine | Outboard 115 HP | 1979-82 | DI-21121 | |
| TC-100A | Force | Outboard | Carb Kit DI-23494 | ||
| TC-102A | Force | Outboard 50HP | 1991-92 | Carb Kit DI-23494 | |
| TC-102B | Force | Outboard 50HP 92C OE000001 Thru OE009499 | 1992-94 | Carb Kit DI-23494 | |
| TC-103C | Force (Top Carb) | Outboard 150HP 89A/92C And OE000001 Thru OE009499 | 1989-92 | Carb Kit DI-23494 | |
| TC-104B | Force (Center Carb) | Outboard 150HP 89A/92C And OE000001 Thru OE009499 | 1989-92 | Carb Kit DI-23494 | |
| TC-105C | Force (Bottom Carb) | Outboard 150HP 89A/92C And OE000001 Thru OE009499 | 1989-92 | Carb Kit DI-23494 | |
| TC-106A | Force (Top Carb) | Outboard 120HP | 1990-94 | Carb Kit DI-23494 | |
| TC-107A | Force (Bottom Carb) | Outboard 120HP | 1990-94 | Carb Kit DI-23494 | |
| TC-108D | Force (Top Carb) | L Drive 120HP | 1990-92 | Carb Kit DI-23494 | |
| TC-109D | Force (Bottom Carb) | L Drive 120HP | 1990-92 | Carb Kit DI-23494 | |
| TC-111A | Force | Outboard 70HP | 1991-95 | Carb Kit DI-23494 | |
| TC-111B | Force | Outboard 75HP | 1996-97 | Carb Kit DI-23494 | |
| TC-119A | Force (Top Carb) | Outboard 120HP | 1995-97 | Carb Kit DI-23494 | |
| TC-120A | Force (Bottom Carb) | Outboard 120HP | 1995-97 | Carb Kit DI-23494 | |
| TC-121A | Force | Outboard 50HP OE009500 Thru OE065371 | 1992-94 | Carb Kit DI-23494 | |
| TC-122A | Force (Bottom Carb) | Outboard 150HP OE009500 Thru OE 0093699 | 1992-94 | Carb Kit DI-23494 | |
| TC-123A | Force (Center Carb) | Outboard 150HP OE009500 Thru OE 0093699 | 1992-94 | Carb Kit DI-23494 | |
| TC-124A | Force (Top Carb) | Outboard 150HP OE009500 Thru OE 0093699 | 1992-94 | Carb Kit DI-23494 | |
| TC-125A | Force | Outboard | Carb Kit DI-23494 | ||
| TC-126C | Force | 120 JET | Carb Kit DI-23494 | ||
| TC-127C | Force | 120 JET | Carb Kit DI-23494 | ||
| TC-130A | Force | Outboard 50HP | 1995 | Carb Kit DI-23494 | |
| TC-131A | Force | Outboard 40HP | 1996-97 | Carb Kit DI-23494 | |
| TC-134A | Force | Outboard 50HP | 1996-97 | Carb Kit DI-23494 | |
| TC-135A | Force | Outboard 40HP | 1998-99 | Carb Kit DI-23494 | |
| TC-136A | Force | Outboard 50HP | 1998-99 | Carb Kit DI-23494 | |
| TC-137A | Force | Outboard 75HP | 1998 | Carb Kit DI-23494 | |
| TC-138A | Force (Top Carb) | Outboard 120HP | 1998-99 | Carb Kit DI-23494 | |
| TC-139A | Force (Bottom Carb) | Outboard 120HP | 1998-99 | Carb Kit DI-23494 | |
| TC-140A | Force | Outboard 120HP | 1997 | Carb Kit DI-23494 | |
| TC-141A | Force (Lower) | Outboard Jet 120HP | 1997 | Carb Kit DI-23494 | |
| TC-142A | Force | Outboard 40HP | 1999 | Carb Kit DI-23494 | |
| TC-143A | Force | Outboard 50HP | 1999 | Carb Kit DI-23494 | |
| TC-144A | Force (Upper) | Outboard 120HP | 1999 | Carb Kit DI-23494 | |
| TC-145A | Force (Lower) | Outboard 120HP | 1999 | Carb Kit DI-23494 | |
| TC-146A | Force (Upper) | Outboard 120HP SJ | 1999 | Carb Kit DI-23494 | |
| TC-147A | Force (Lower) | Outboard 120HP SJ | 1999 | Carb Kit DI-23494 |
Product Data
| Part Number | DI 23494 |
| OEM Manufacture | Tillotson |
| Product Description | Carburetor Kit |
| Product Application | Outboard Motor |
| Condition | New |
