McCulloch Sears 7.5 9hp Carburetor Marvel Schebler Tillotson SUM14A SUM15 SUM16 SUM17 SUM19 SUM20 Carb Kit DI 20466
$38.95
30 Items
DI 20466

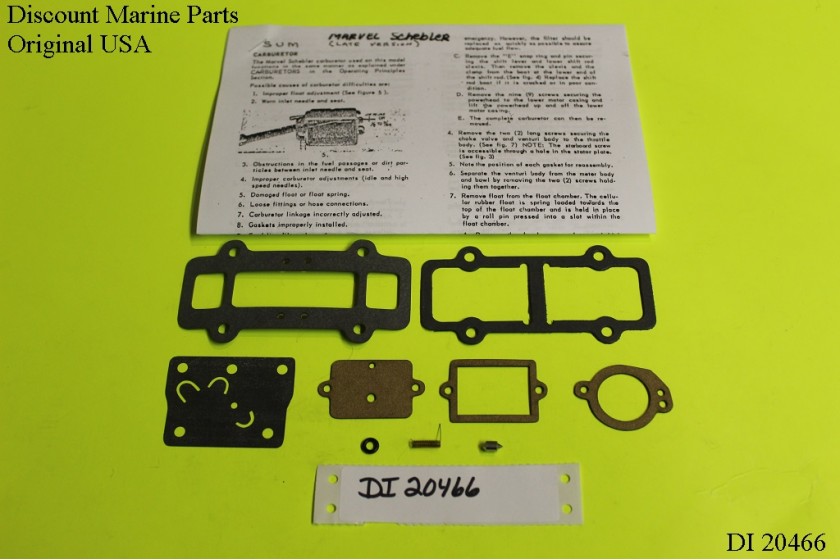

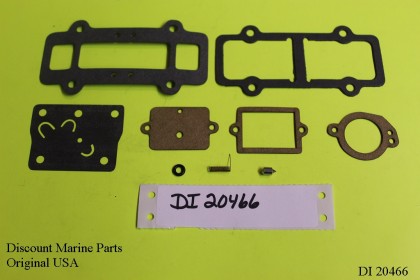

You are purchasing a Marvel Schebler / Tillotson SUM Series Carb Kit
DI 20466
You are purchasing a Marvel Schebler / Tillotson SUM Series Carb Kit
Note!
The Sears, Scott and McCulloch Low Profile 7 1/2 & 9 HP Outboards
Used 3 different Tillotson and Marvel Schebler Carburetors.
Make sure your Diaphragm matches picture before ordering.
~
Application:
McCulloch Sears Outboard Motors - All Low Profile 7 1/2 & 9 HP from 1964 - 1968
Marvel Schebler: SUM-14A SUM-15 SUM-16 SUM-17 SUM-19 & SUM-20
~
Note! Does Not Fit the SUM-14 (SUM-14 & SUM-14A are different)
~
Marvel Schebler Model Series SUM
| Model | Description | End Customer | Equipment Type | Year Used | Our Repair Kit |
| SUM-13 | McCulloch | Outboard 7.5HP | 1962-63 | DI-20475 N1 | |
| SUM-14 | McCulloch | Outboard 7.5HP | 1962-63 | DI-20475 N1 | |
| SUM-14A | McCulloch | Outboard 7.5HP & 9HP | 1964-68 | DI-20466 | |
| SUM-15 | McCulloch | Outboard 7.5HP & 9HP | 1964-68 | DI-20466 | |
| SUM-16 | McCulloch / Sears | 574-60100 64600710 Outboard 7.5HP | 1964 | DI-20466 | |
| SUM-17 | McCulloch / Sears | 574-60121 65600711 Outboard 7.5HP | 1965 | DI-20466 | |
| SUM-19 | McCulloch / Sears | 574-60660 574-60670 Outboard 9HP | 1966 | DI-20466 | |
| SUM-20 | McCulloch | Outboard 7.5HP & 9HP | 1964-68 | DI-20466 |
30 Items
Product Data
| Part Number | DI 20466 |
| OEM Manufacture | Marvel Schebler |
| Product Description | Carburetor Kit |
| Product Application | Outboard Motor |
| Condition | New |
