Tillotson H1A H2A H3A H4A H6A H7A H8A H9A Carburetor Power Products Power Machinery Clinton Titan Carb kit DI 23412

$39.95
1 Item

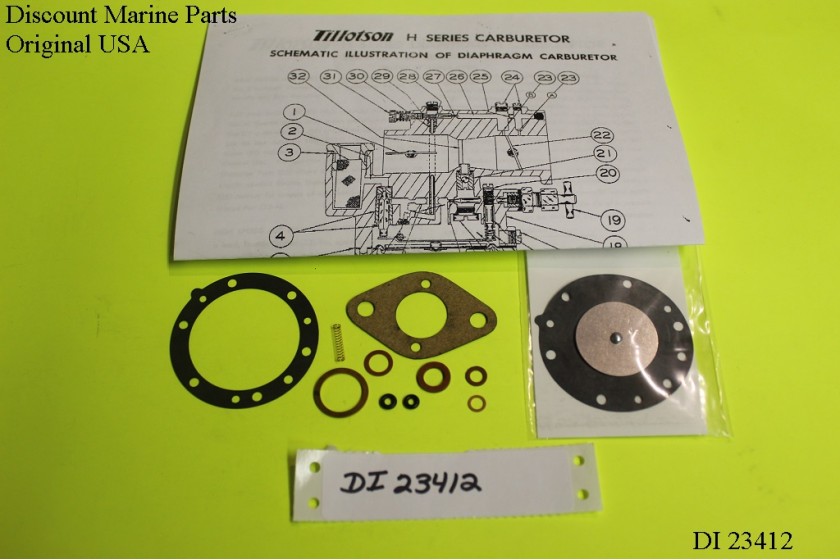

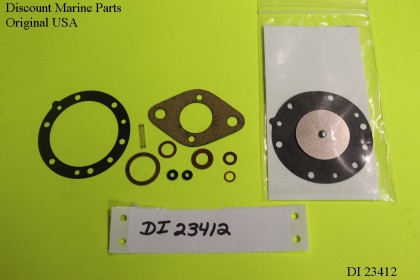

You are purchasing a Tillotson "H" Series Carburetor Kit

Quantity
Last items in stock

You are purchasing a Tillotson H Repair Kit.

Make sure you have a Tillotson, some of these models also used a "Brown Mfg" Carburetor

(Parts are not interchangeable)

Note! This kit doesn't have a Needle and Seat

(It is obsolete and we are making a replacement)

Tillotson   Model Series H

Note!    Tillotson had two  "H" Carburetor Series  -  a very early one and another one starting in the 1950's

Model Description End Customer Equipment Type Year Used Our Repair Kit
Old Series
H-1-A   Moline Plow Company Stephens Motor Works
H-4-A   The Pilot Motor Car Co.   1923
New Series
H-1A    Power Products Power Saw  400, 402, 405, 406 1952-54 DI-23412
H-1A    Power Products Power Saw AH-80 1953-54 DI-23412
H-2A    Homelite Power Saw  26A & 26LCS nbsp; 4HP 1953-54 DI-23412
H-3A   Power Machinery Power Saw  PM-Rocket K-1  4HP 1953-54 DI-23412
H-3AX Replaced by HP-11C Power Machinery Power Saw  PM-Rocket K-2  5HP 1954-55 Call or email
H-4A   Power Machinery Power Saw  PM Torpedo  6HP 1954 DI-23412    N1
H-5A    Power Products Industrial  2771 & 2772  2.8HP  This model may use HL-2A 1954-57 Carb Kit DI-23885
H-5A    Power Products Power Saw  2775  2.8HP  This model may use HL-2A 1953-57 Carb Kit DI-23885
H-5A    Terrill Power Saw  FA, CS5 & CS5B 1953-55 Carb Kit DI-23885
H-5A    Titan Power Saw  30 & 35  5HP 1953-55 Carb Kit DI-23885
H-5AP    Power Products Power Saw  2782  2.8HP  This model may use HL-2A 1955-57 Carb Kit DI-23885
H-5AX   West Bend 2772 1955 Carb Kit DI-23885
H-6A    Homelite Power Saw  5-30 & 5-30N 5.5HP 1953-56 DI-23412
H-7A       1953 DI-23412
H-8A    Titan Power Saw  45, 65, 100  5HP 1953-54 DI-23412
H-9A    Titan Power Saw  10HP 1954 DI-23412
H-10A    Clinton Power Saw  5A  5HP 1953-56 DI-23412
H-12A    Power Products 1019  1953-54 DI-23412
H-15A Replaced by H-15B Clinton Power Saw  1955-56 DI-23412
H-15B    Clinton Power Saw  1956 DI-23412



Notes:
N1 - Only 50 H-4A's were used by Power Machinery

Power Machinery
1 Item

Product Data

Part Number DI 23412
OEM Manufacture Tillotson
Product Description Carburetor Kit
Product Application Chainsaw
Condition New

Specific References
